Grinding Machine
High-Precision CNC Grinding for Shaft Components
Description
Largest workpiece diameter: Ø250 mm
Largest workpiece length: 150 mm
Height of the workpiece spindle above the floor: 1150 mm
Largest swing diameter above the table 310 mm
Workpiece spindle speeds NC-programmable: 0 - 3000 rpm
Table strokes:
Z axes : 885 mm
X axes : 300 mm
Table speed infinitely adjustable:
Z axes : 0 - 60 m / min
X axes : 0 - 30 m / min
Infeed speed infinitely variable: 0.01 - 15 mm / min
Infeed depending on the stroke: 0.0005 - 0.1 mm
Workpiece spindle positioning: C-axis

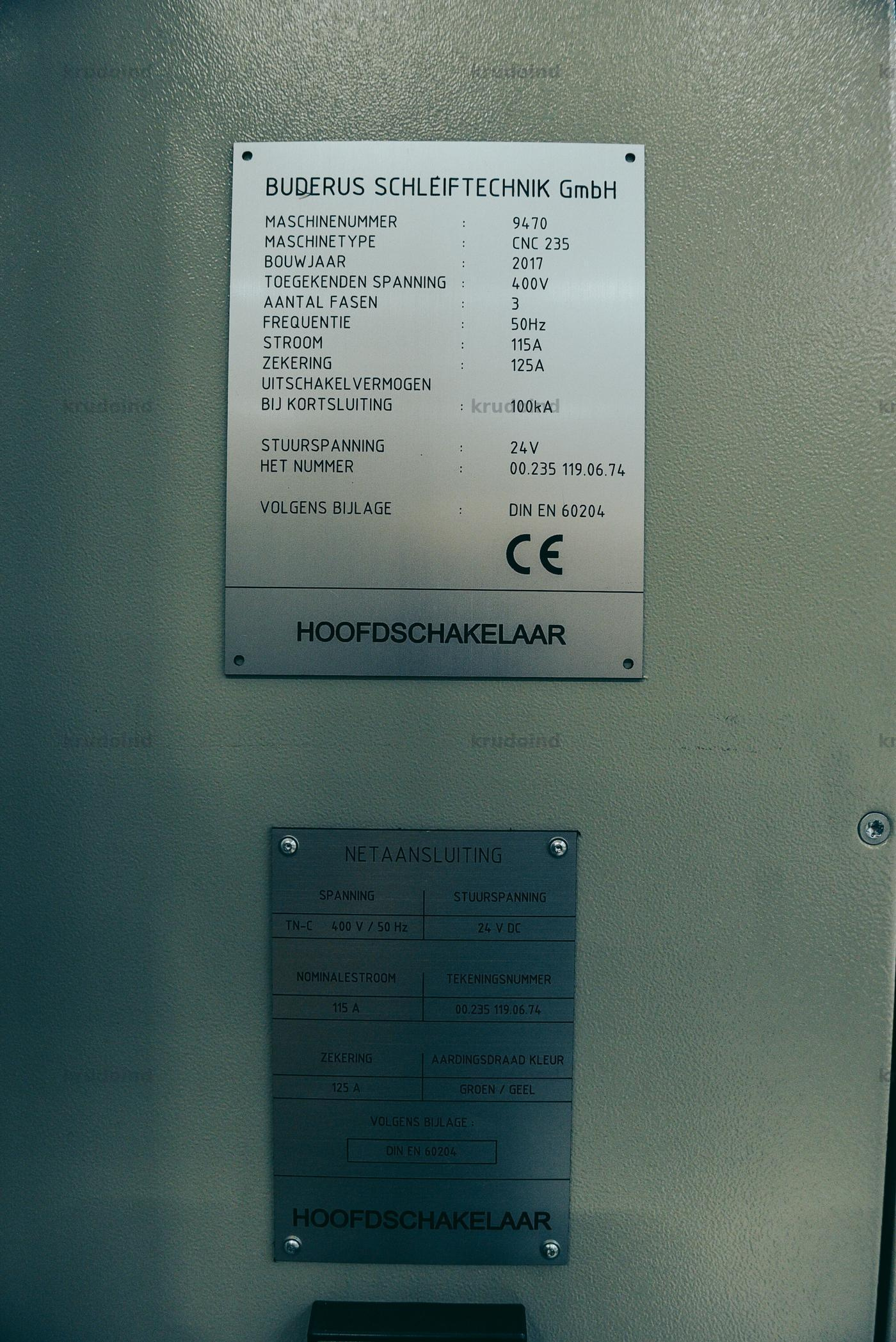

Operating voltage: 3~400 VAC/50 Hz
Connected load of the machine: approx. 45 kW

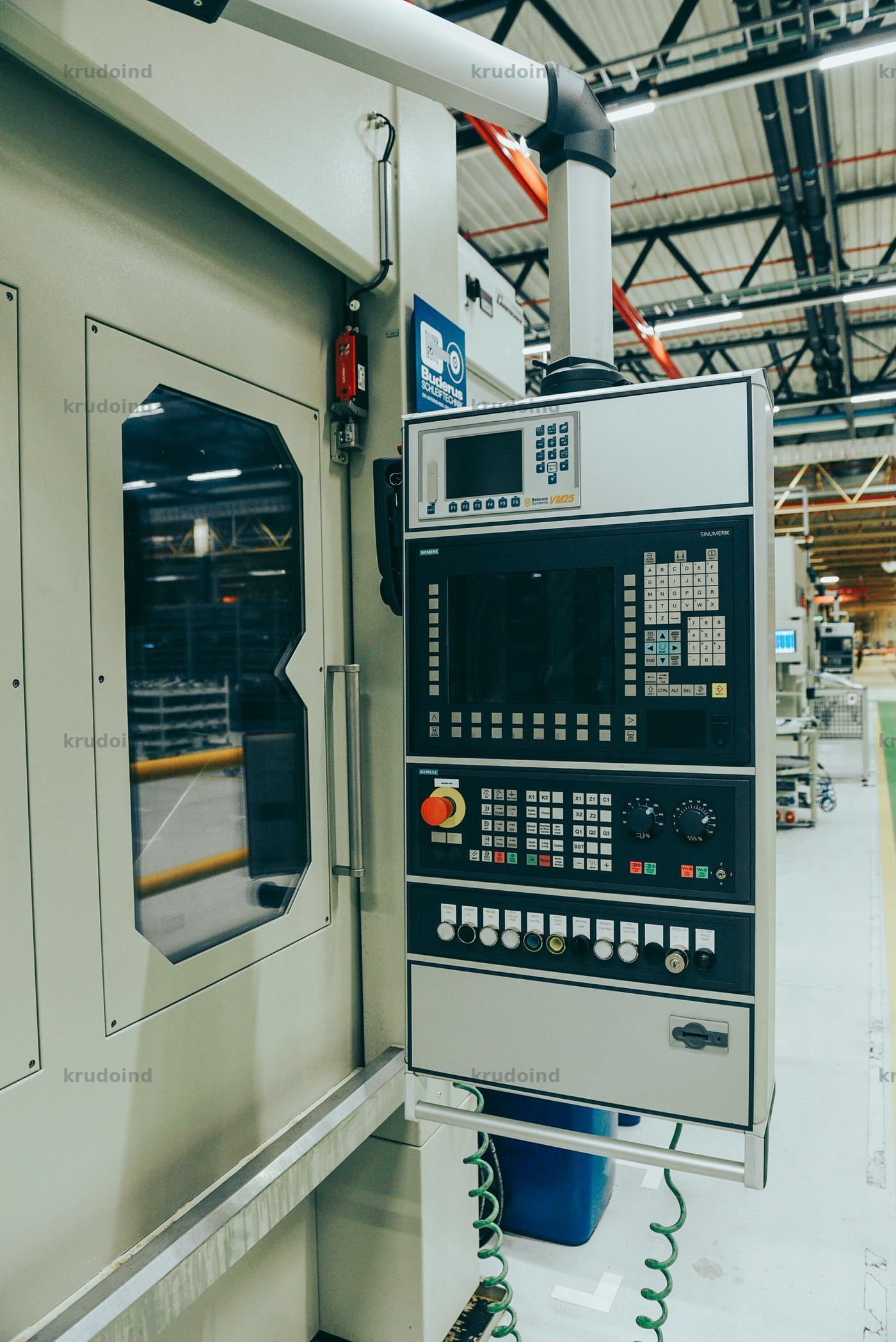

Control: Siemens SINUMERIK 840 D SL
Compressed air connection: 30 Nm³/h-5 bar
Weight: 16500 kg
