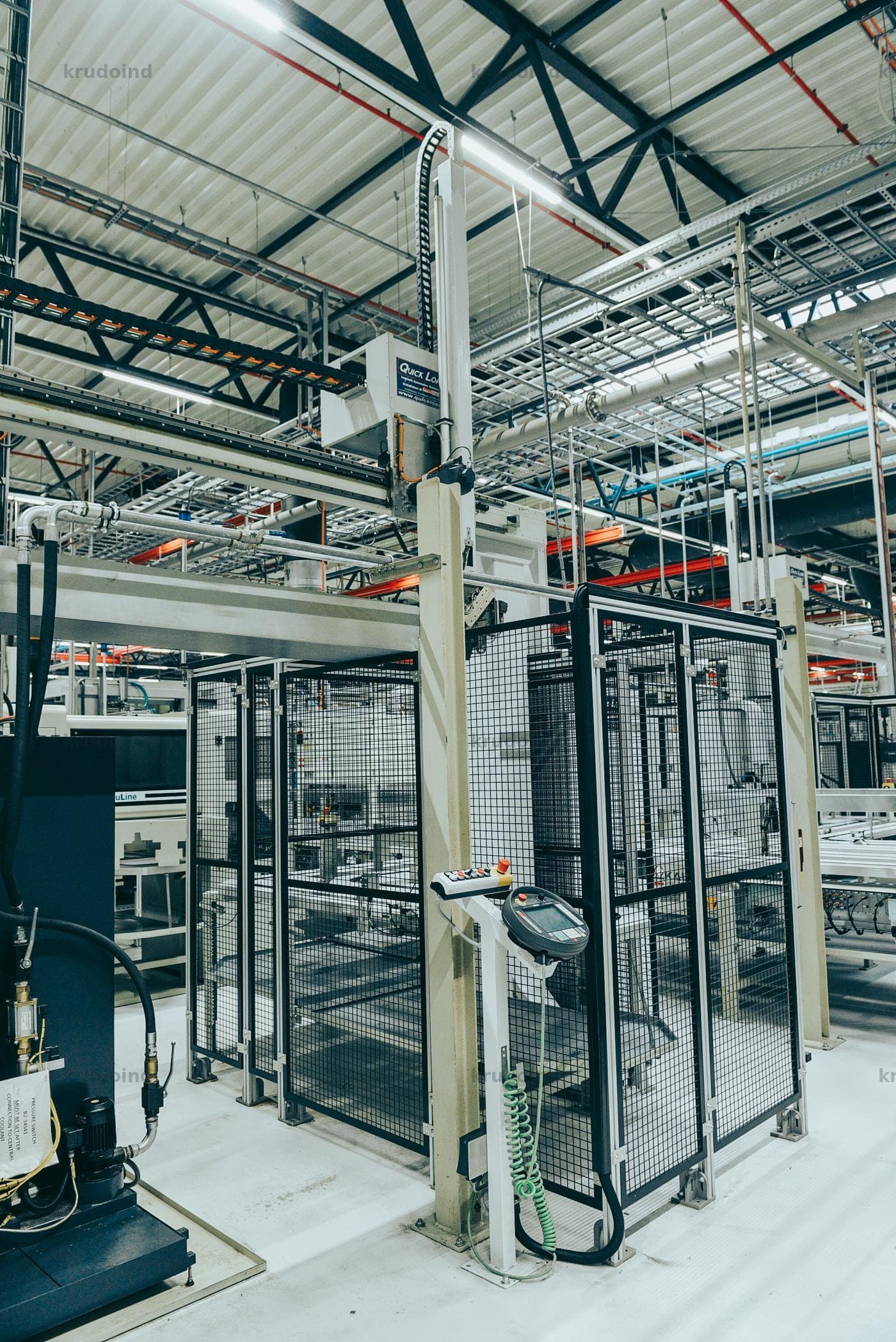

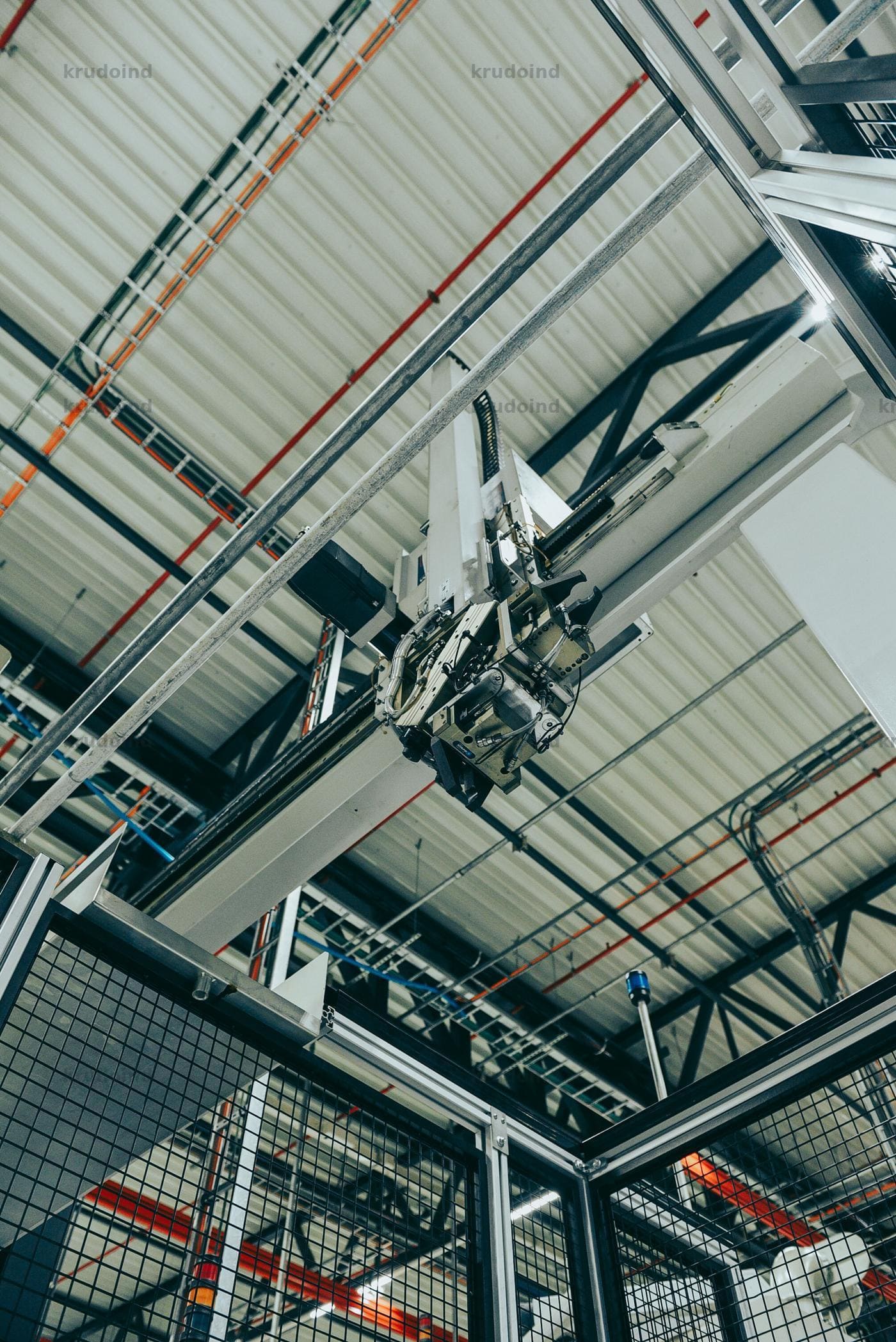

Two-Axis Cartesian Loader
Two-Axis Cartesian Loading System
Description
Two-axis Cartesian loader having the following characteristics:
• Total arm load 30 Kg.
• Max. speed X axis 150m/min.; travel 5,000 mm., repeatability 0.1 mm.
• Max. speed Y axis 150m/min.; travel 5,000 mm., repeatability 0.1 mm.
• 2 degrees of freedom governed by low-inertia brushless servomotors.
• Siemens motor with brake for X axis, 1FT/1FK mod. 1FK7062-2AF71-1UH0.
• Siemens motor with brake for Y axis, 1FT/1FK mod. 1FK7062-2AF71-1UH0
• Drive unit asse X-Y Siemens Double Motor Module; 5,00 A 6SL3120-2TE15-0AA4.
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
See It in Action
Watch the Machinery at work—capturing its quality in a real production environment.
More Machines from The Same Product Line
Explore additional assets from the same automotive painting and assembly line—available for standalone purchase or full-line relocation.
Machinery from The Same Factory
Explore high-value equipment originally operated within this factory—available individually or as part of a larger line or plant acquisition.
Your Contacts for This Project
Have questions about the machine, logistics, or technical details? Reach out directly to our specialists—they’ll guide you through every step with clarity and care.
