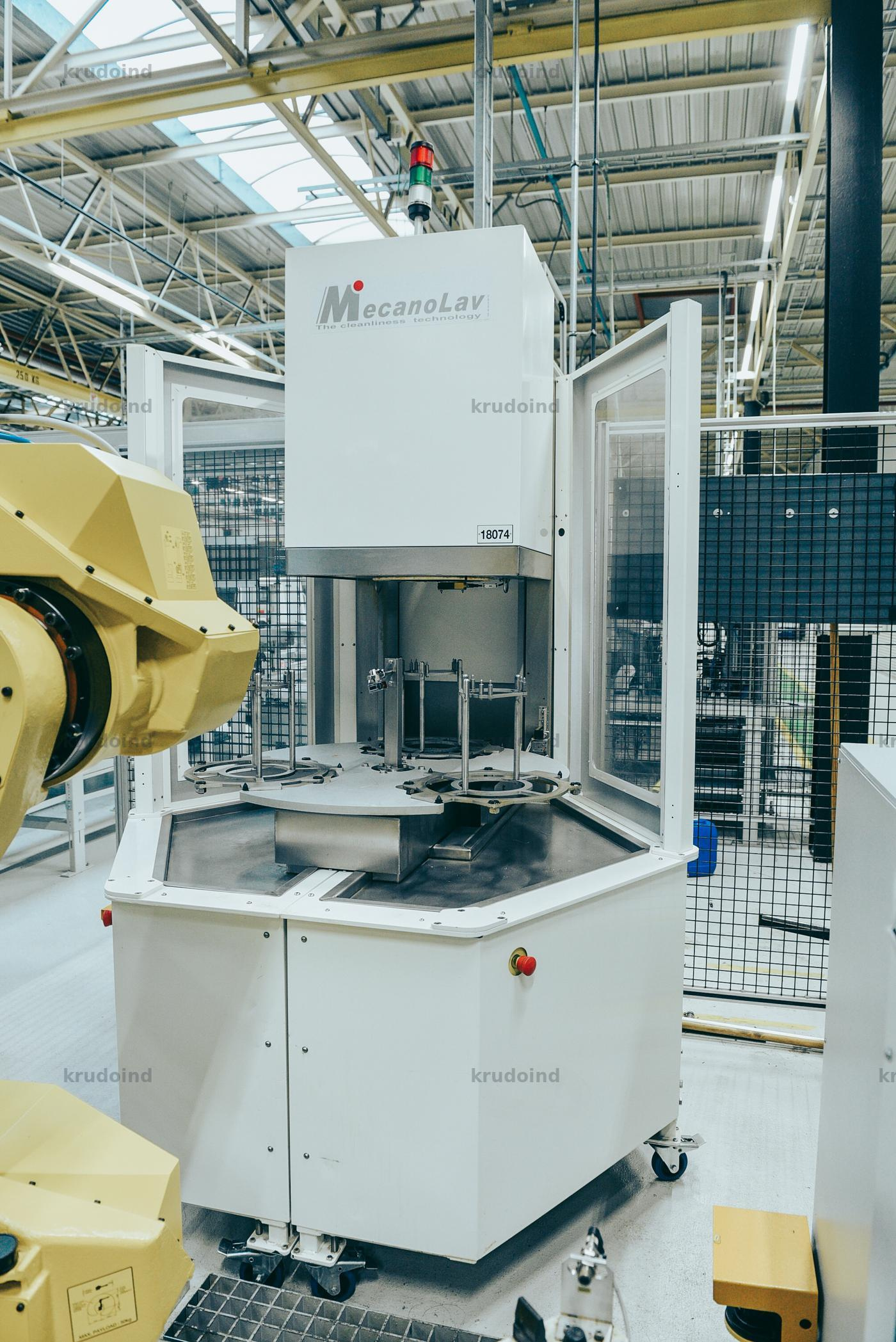

Industrial Washing Machine
Automated Industrial Parts Washer
Description
Dimensions
Required space (LxWxH): 3626 mm x 700mm x 2521 mm
Weight approx. 1100 kg
Washing circuit
Pressure 5 bar
Pump Power 4 kW
Total detergent bath volume 430 liters with DC50
Tank heating power 12 kW
Operating temperature 55 to 60°c
Machine environment
Sound level less than 78 dB(A) 1 meter around the machine
Energy and connection
Electrical connection 3 x 400 V - 50Hz + T
Heater Electric
Total installed power 18 kW
Pressure of water connection 3 to 4 bar
Steam extraction connection diam. 100 mm
Compressed air consumption approx. 0,8 Nm3 / cycle
Main components brands :
Electrical various components (relays, contactors, …) SIEMENS
Geared electric motor SEW
Fan extractor AIRAP
Pump EBARA
Fine filter EATON
Water level sensor (Radar probe) * SICK
Photo cells and other sensor IFM
Safety light curtains KEYENCE

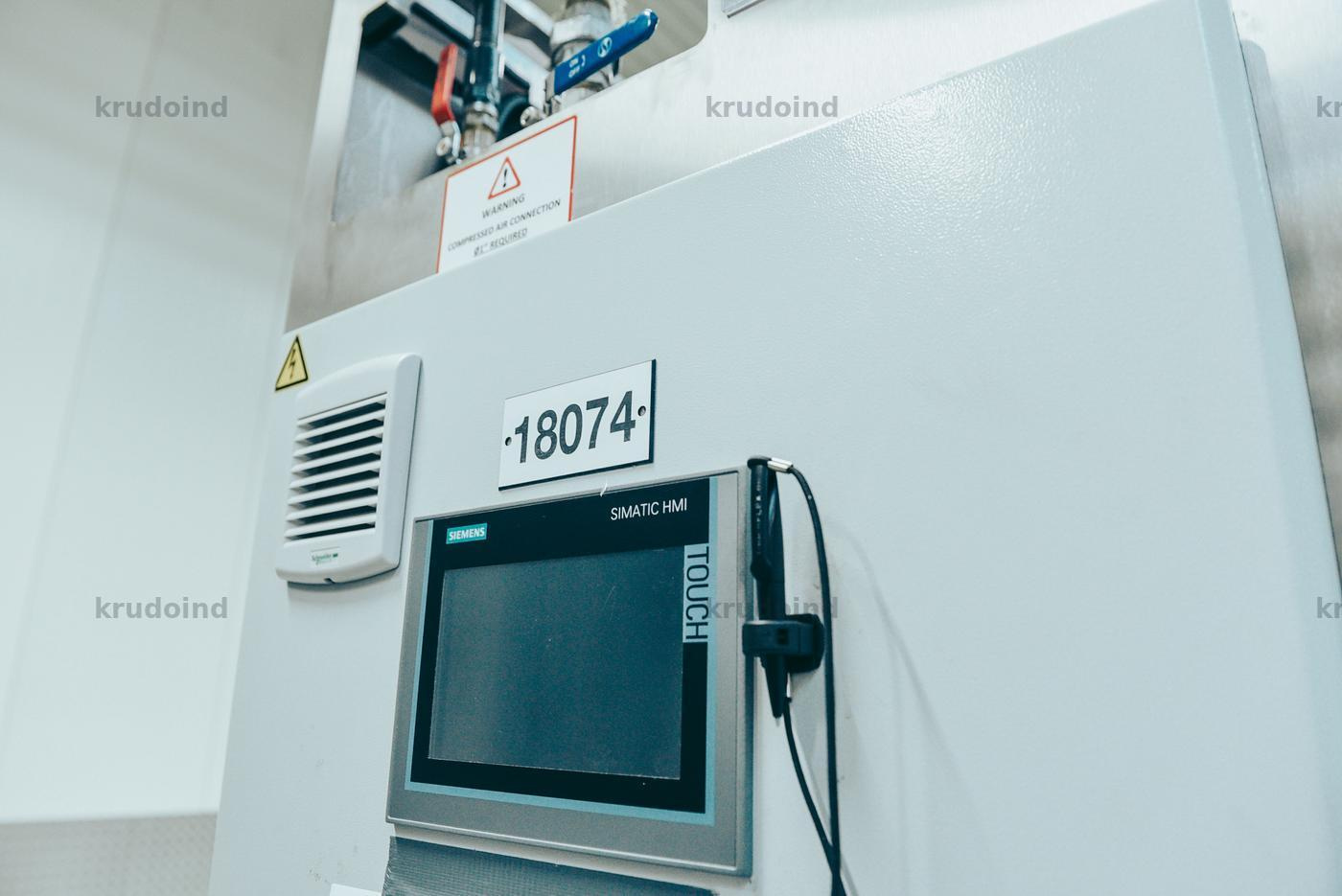

CPU & Display SIEMENS
Pneumatic valve * BURKERT
Various pneumatic components FESTO
