Polishing Machine
Surface Polishing for Enhanced Part Finish
Description

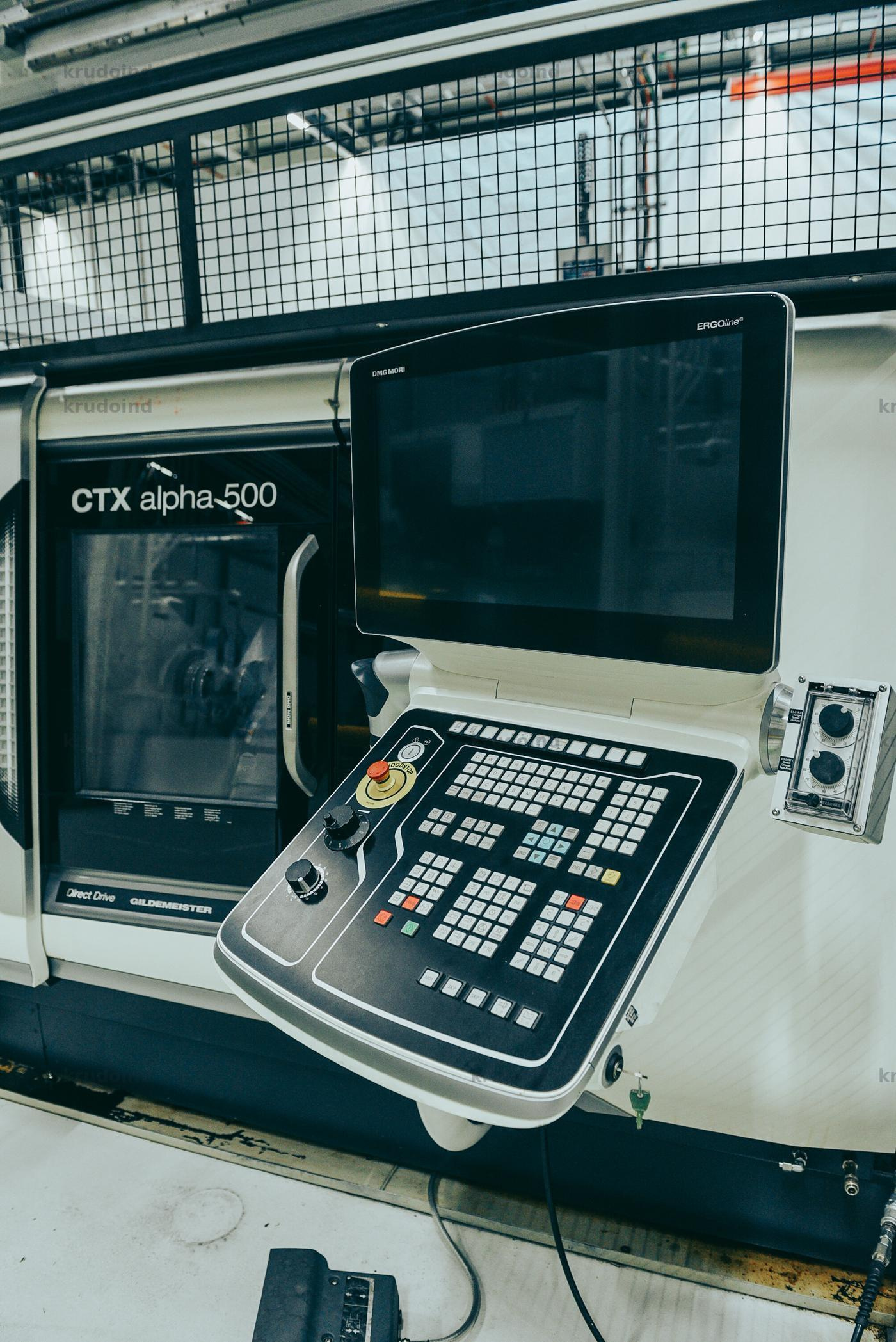

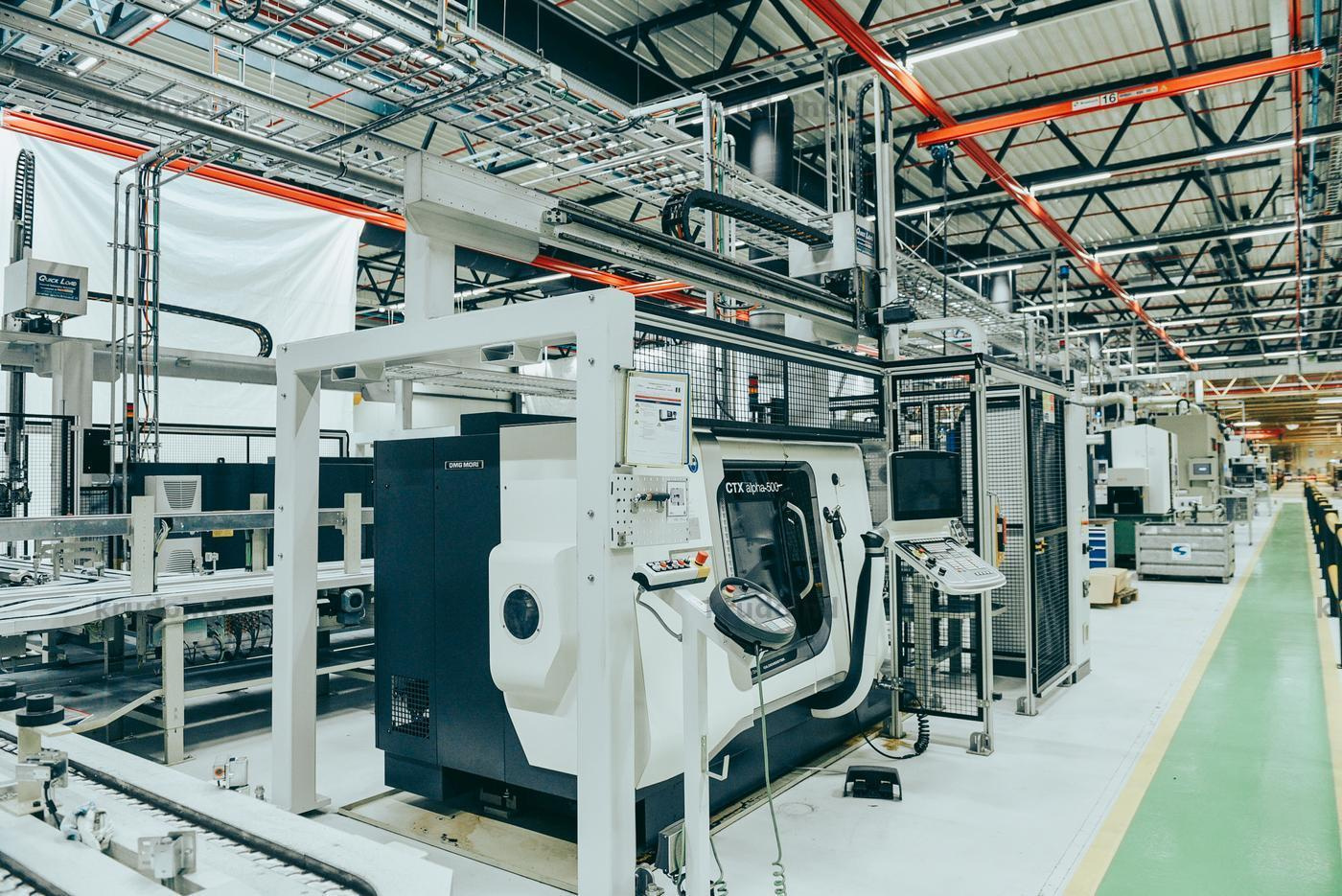

Polishing Machine - DMG MORI CTX alpha 500
2-axis universal turning machine modified with Superfinishing device SUPFINA mod. 202
Working area
swing diameter over guide way protection: 500 mm -- 19,68 in
clamping chuck diameter: 170 (210) mm -- 6,69 (8,26) in
transverse stroke (X axis): 190 mm -- 7,48 in
longitudinal stroke (Z axis): 525 mm -- 20,66 in
Feed drive
rapid feed, X/Z axes: 30/30 m/min -- 1181,1/1181,1 in/min
Y axis* 22.5 m/min -- 885.8 in/min
Main stock
spindle nose size: 140 h5 mm
spindle diameter in front bearing: 100 mm 3,93 in
spindle bore diameter: 73 mm 2,87 in
Main drive
AC main drive power (100%-40% ED) 13 - 14 kW 17,42 – 18,76 HP
Torque (100%-40% ED) 171,5 - 192 Nm 126,49 - 141,61 ft.Lb
Speed range 20 – 6000 rpm
Electrical connection (5 conductor system, L1, L2, L3, N, PE)
connected load, total approx. 30 kVA
voltage: 400 V
frequency: 50 Hz
protection (slow-blow) acc. to VDE 0100: 63 A
permissible voltage fluctuation at 400 V: ±10 %
- Superfinishing device SUPFINA mod. 202 without superfinishing tape and with intermediate interface on X axis
Control
CNC control SIEMENS SINUMERIK 840D solutionline Operate with CELOS and ShopTurn 3G, operating system Linux.
Dimensions
machine without chip conveyor L x W x H: approx. 3330 x 2583 x 1829 mm
approx. 144,09 x 91,14 x 71,25 in
Weight: approx.4400 kg -- approx. 9680 lb
