Universal Turning Center
Versatile CNC Turning for Automotive Shafts
Description

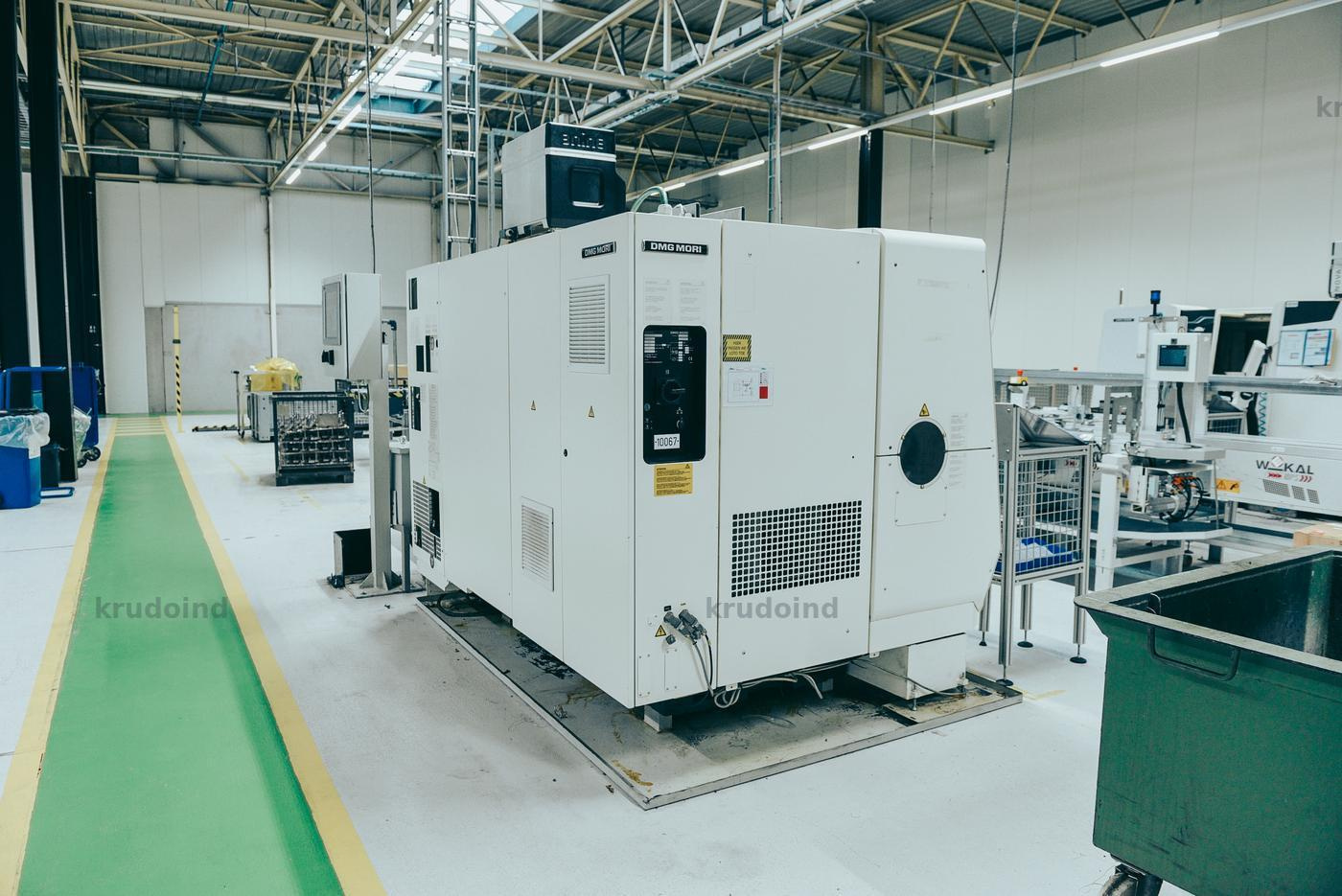

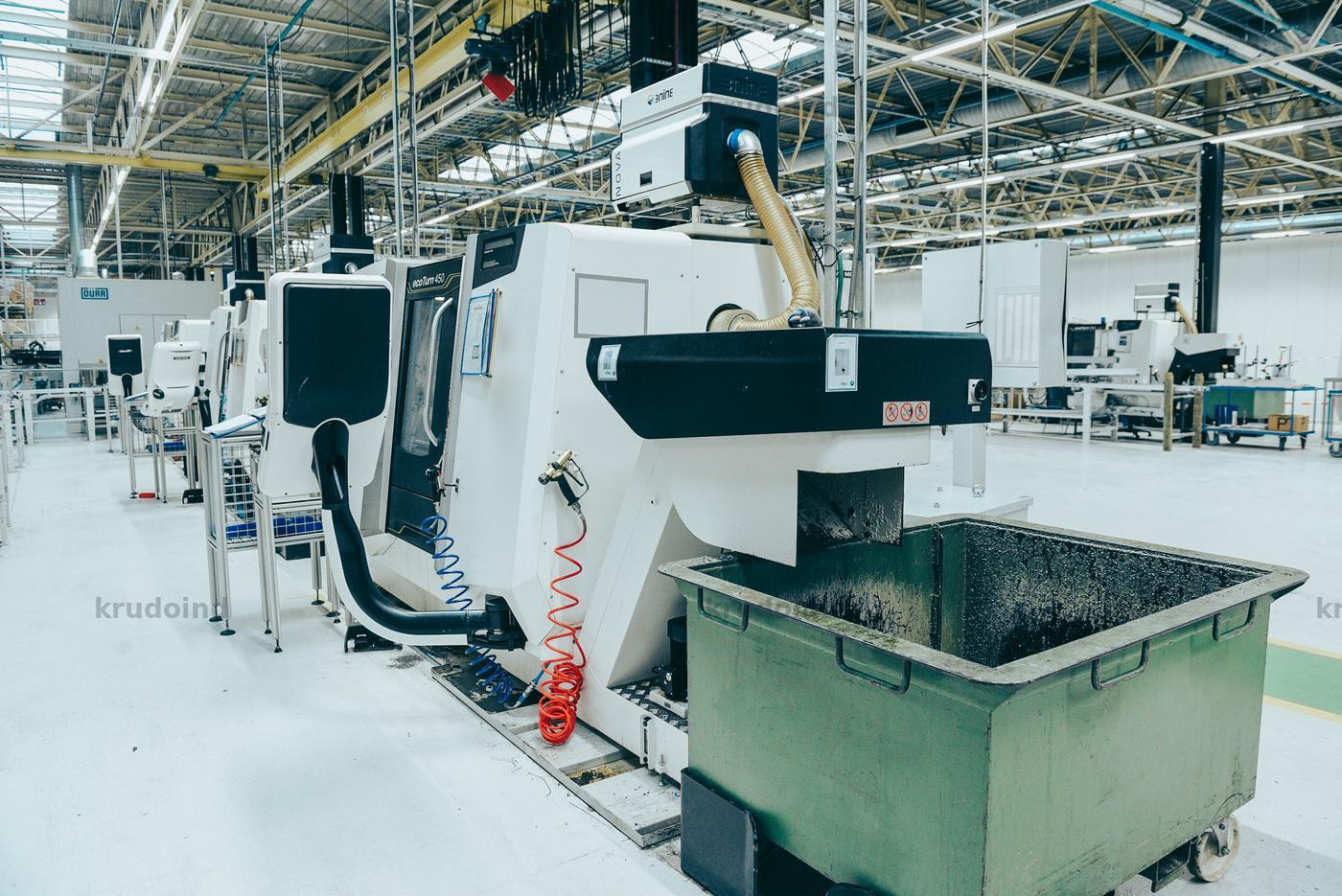

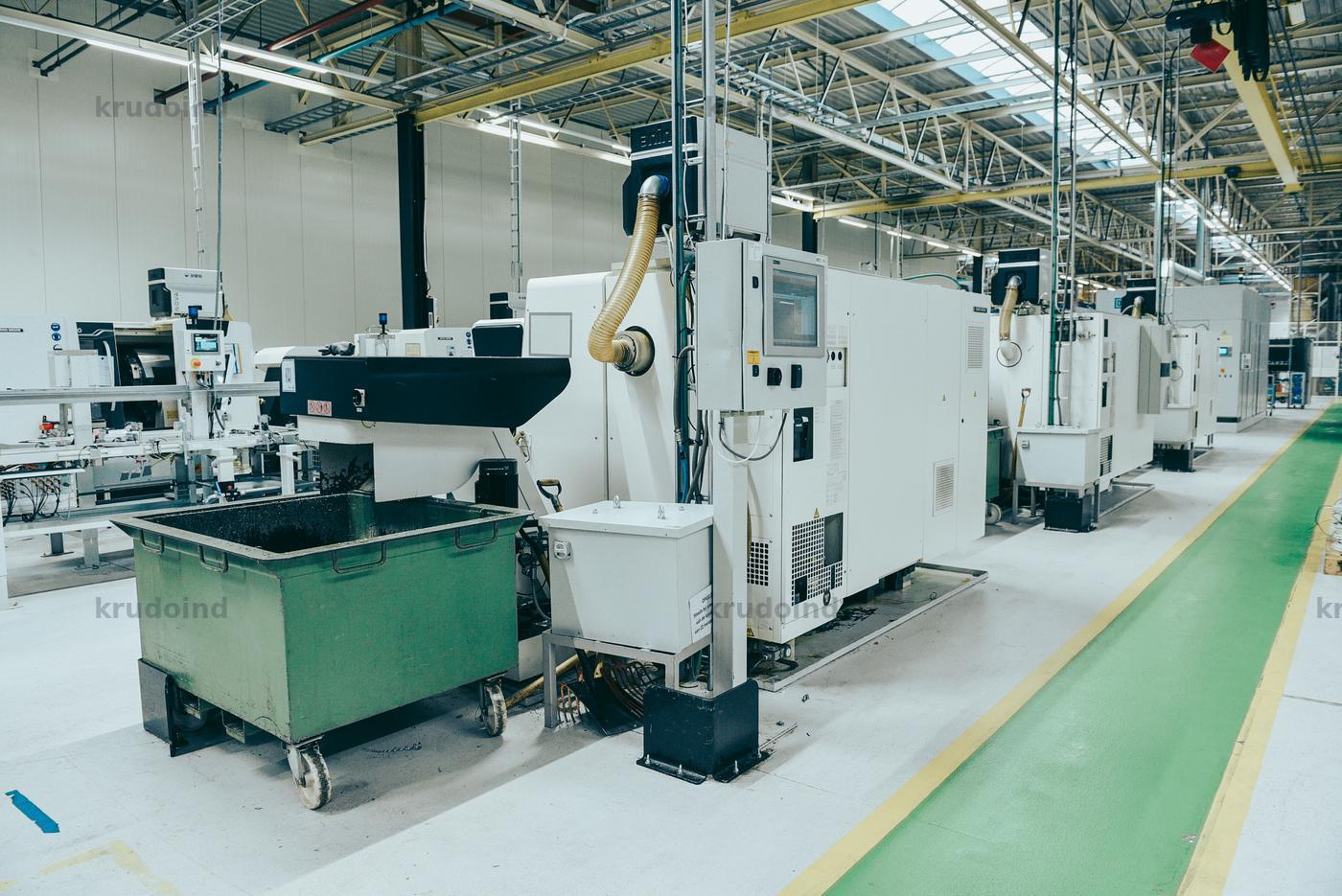

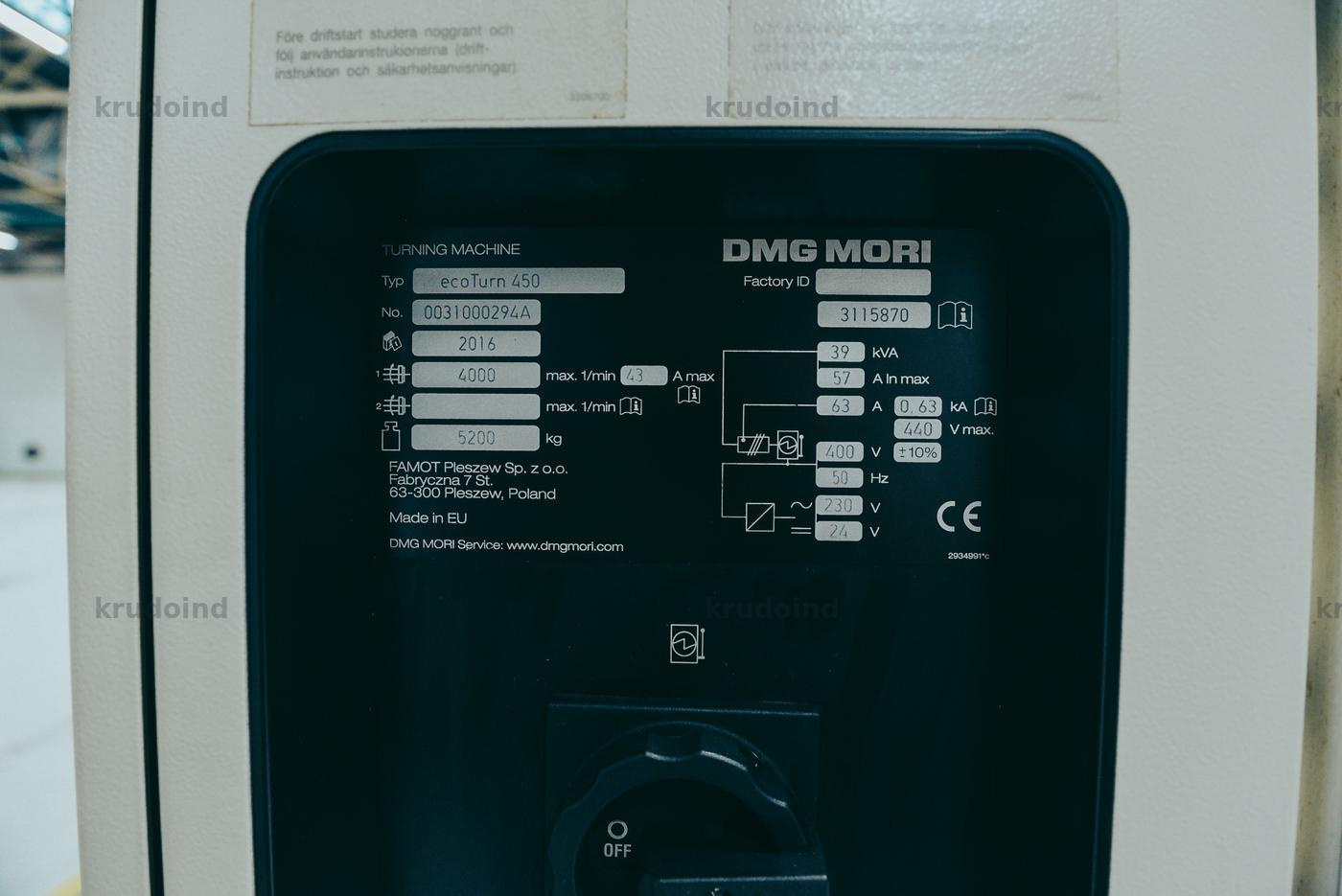

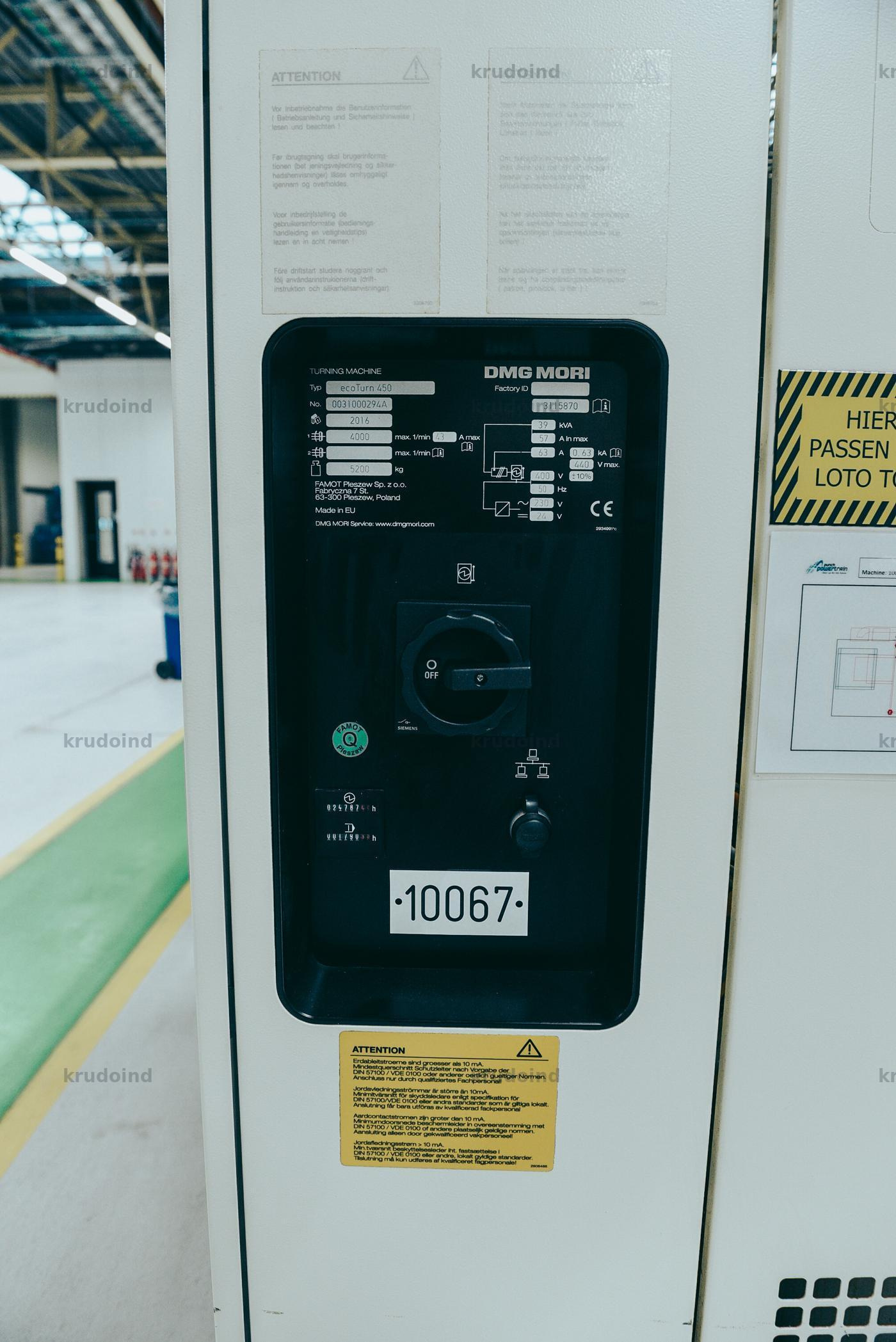

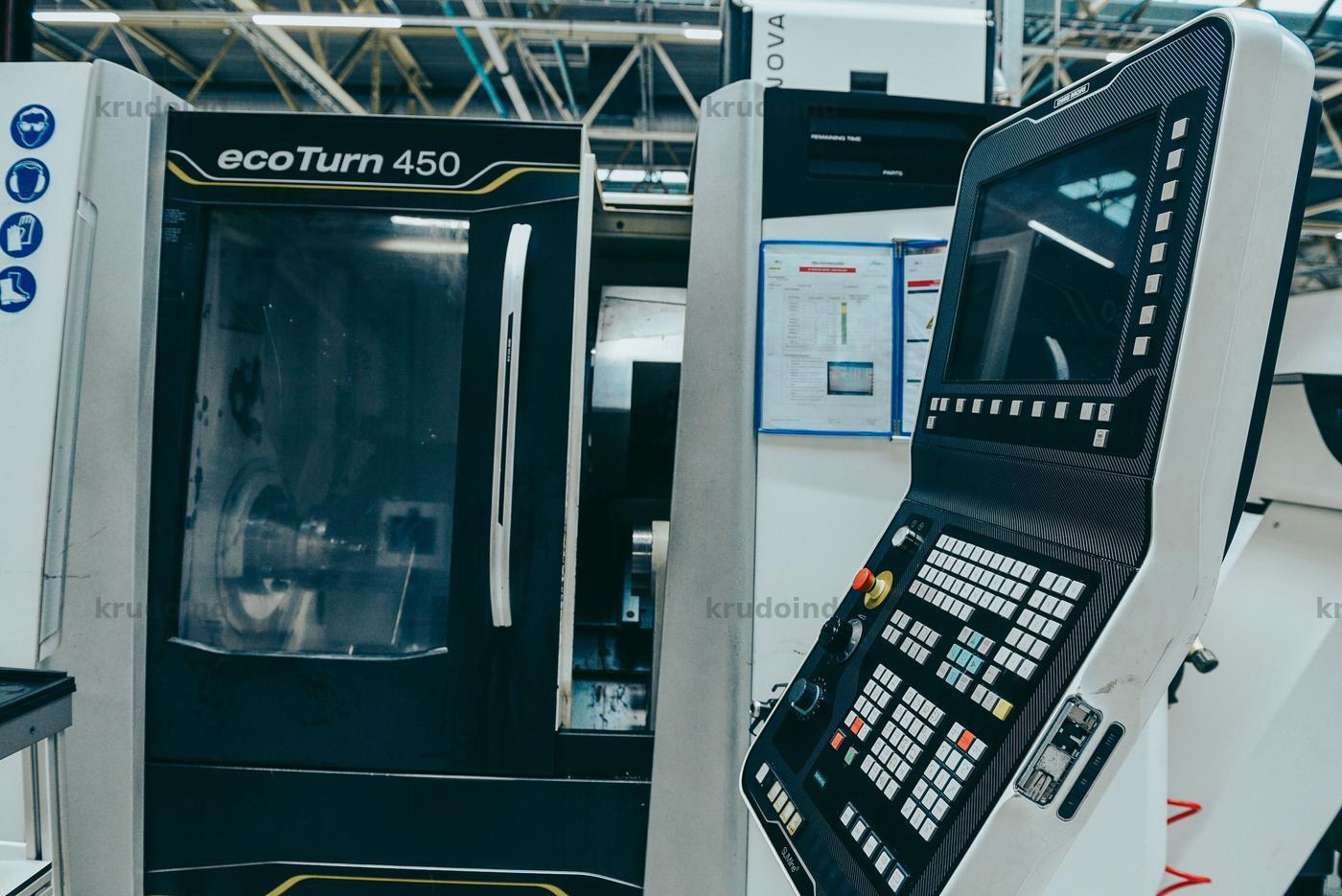

Universal Turning Center - DMG MORI Ecoturn 450
Working area:
- Max. swing: 650 mm
- Swing over cross slides: 465 mm
- Max. turning diameter: 400 mm
- Cross travel (X): 267.5 mm
- Longitudinal travel (Z): 600 mm
- Rapid traverse (X/Z) : 30/30 m/min
Main Spindle:
- Spindle head (flat flange): 170 h5 mm
- Bar capacity: Ø 65 mm / Ø 75 mm
- Spindle diameter in the front bearing: 130 mm
- Chuck: 250/315
- Drive power (40/100% ED): 17.5 kW/12.5 kW
- Maximum torque (40/100% ED): 370 Nm/280 Nm
- Maximum speed: 4000 rpm
Tool holder:
- To ISO 230-2 in X/Z axes (indirect measurment system) : 8/8 µm
- To ISO 230-2 for C axis: 20 µm
Tool holder:
- Number of toll stations: 12
- Of which driven tool stations: 12
- Shank diameter: 40 mm
- Drive power (40% ED) at 2000rpm: 4.2 kW
- Maximum torque (40% ED): 20 Nm
- Maximum speed: 4000 rpm
Controls:

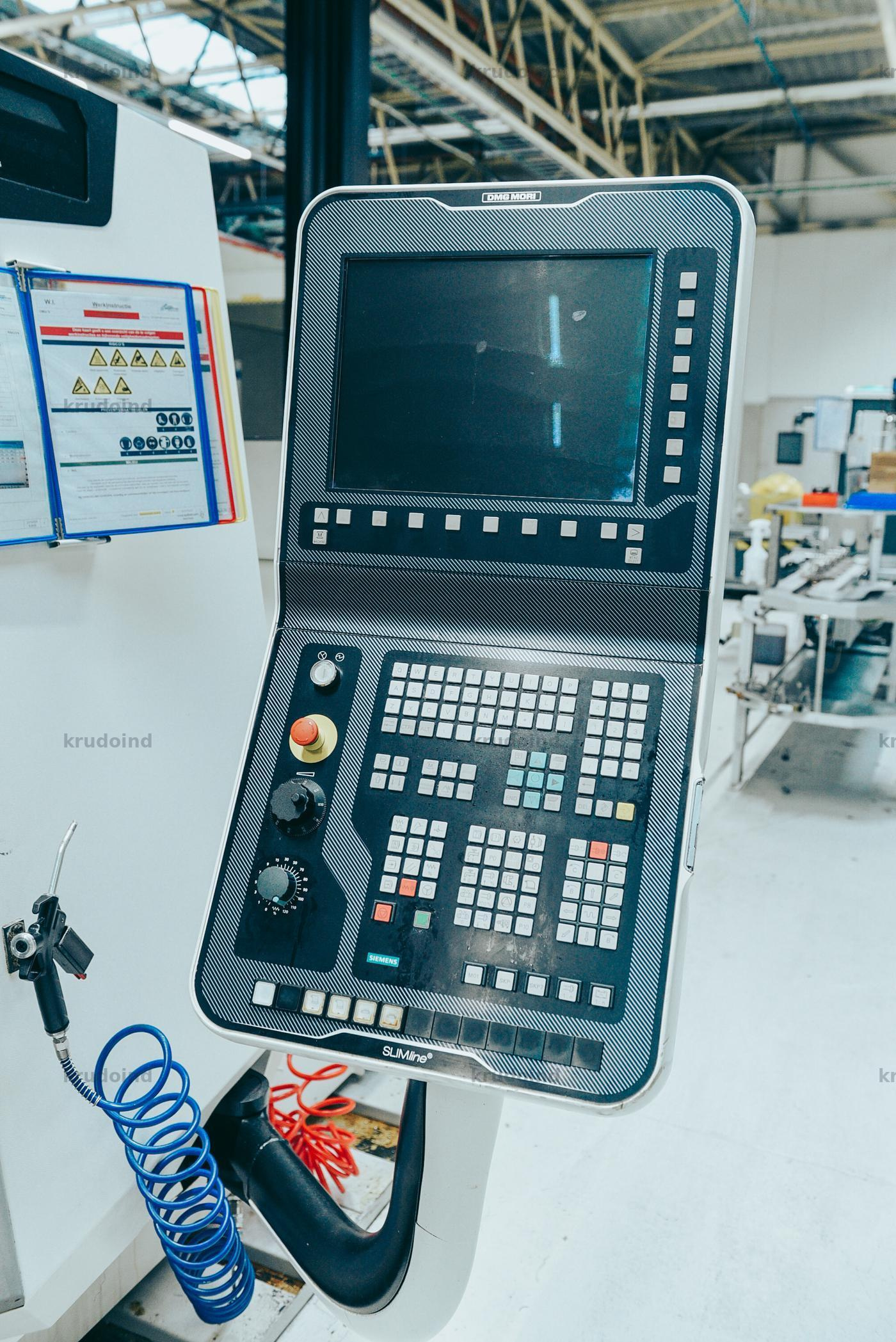

- SIMline withOperate on SIEMENS 840D solutionline
Weight: 5800 kg
