Grinding Machine
High-Accuracy CNC Grinding for Component Finishing
Description

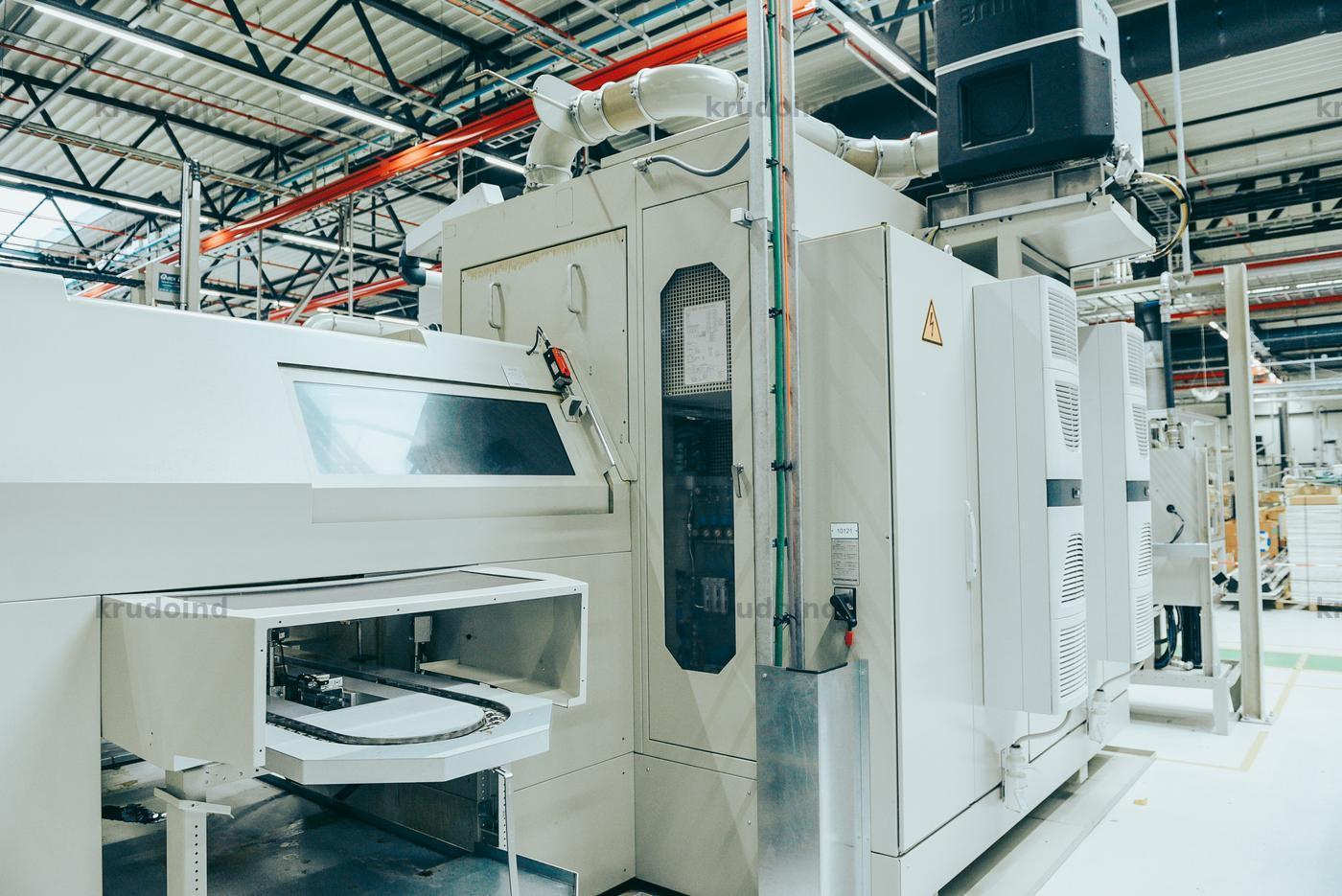

Grinding Machine Buderus CNC 235 H N-LA
- Largest workpiece diameter: 150 mm
- Max. workpiece diameter: 250 mm
- Largest workpiece length: 350 mm
- Largest swing diameter above the table: 310 mm
- Height of the workpiece spindle above the floor: 1150 mm
- Workpiece spindle speeds NC-programmable: 0 - 3000 U/min
Table strokes:
- Z axes : 885 mm
- X axes : 300 mm
Table speed infinitely adjustable:
- Z axes : 0 - 60 m / min
- X axes : 0 - 30 m / min
- Infeed speed infinitely variable: 0.01 - 15 mm / min
- Infeed depending on the stroke: 0.0005 - 0.1 mm
- Workpiece spindle positioning: C-axis
- Connected load of the machine: approx. 45 kW
- Control: Siemens SINUMERIK 840D
- Weight: 7500 kg
