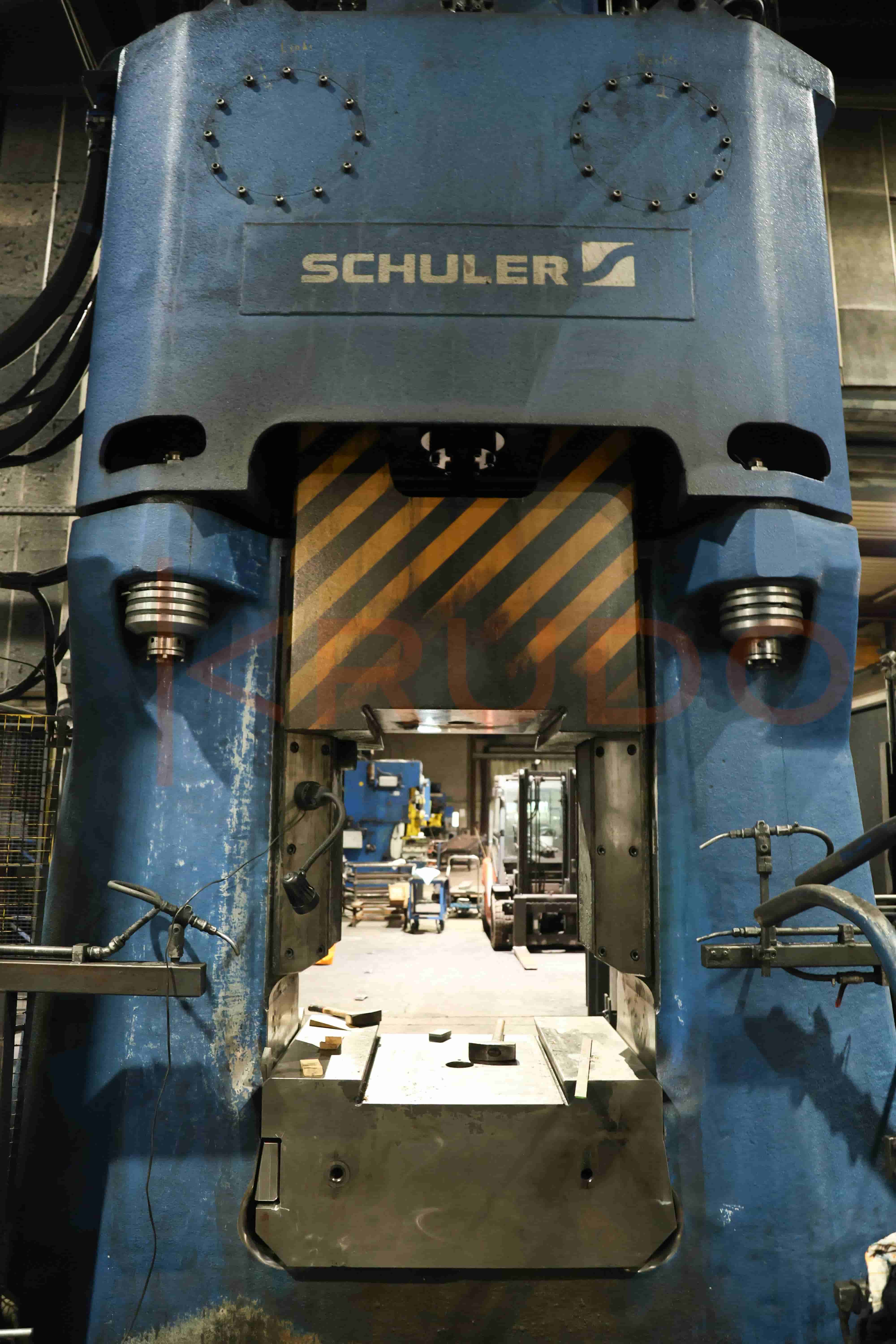

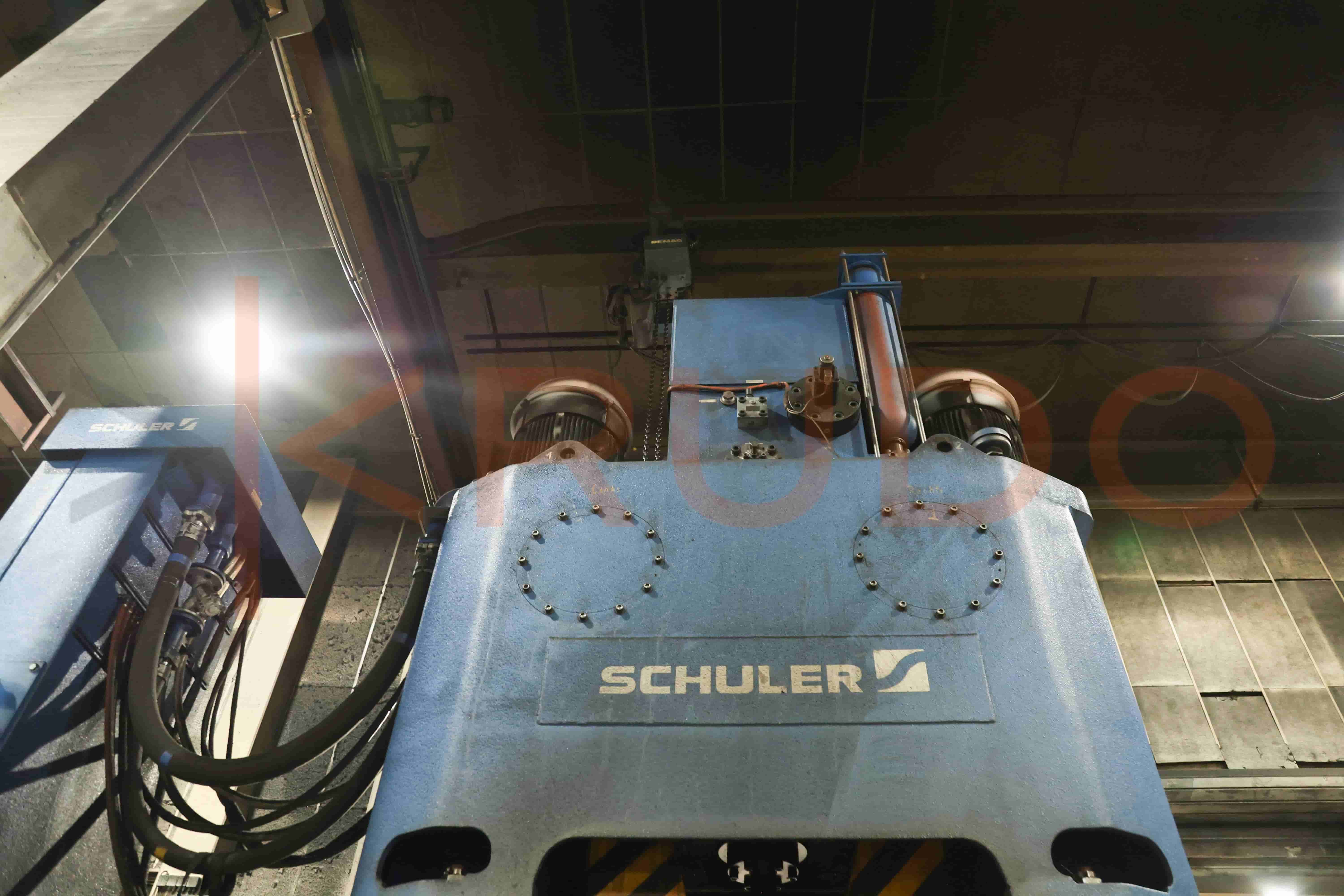

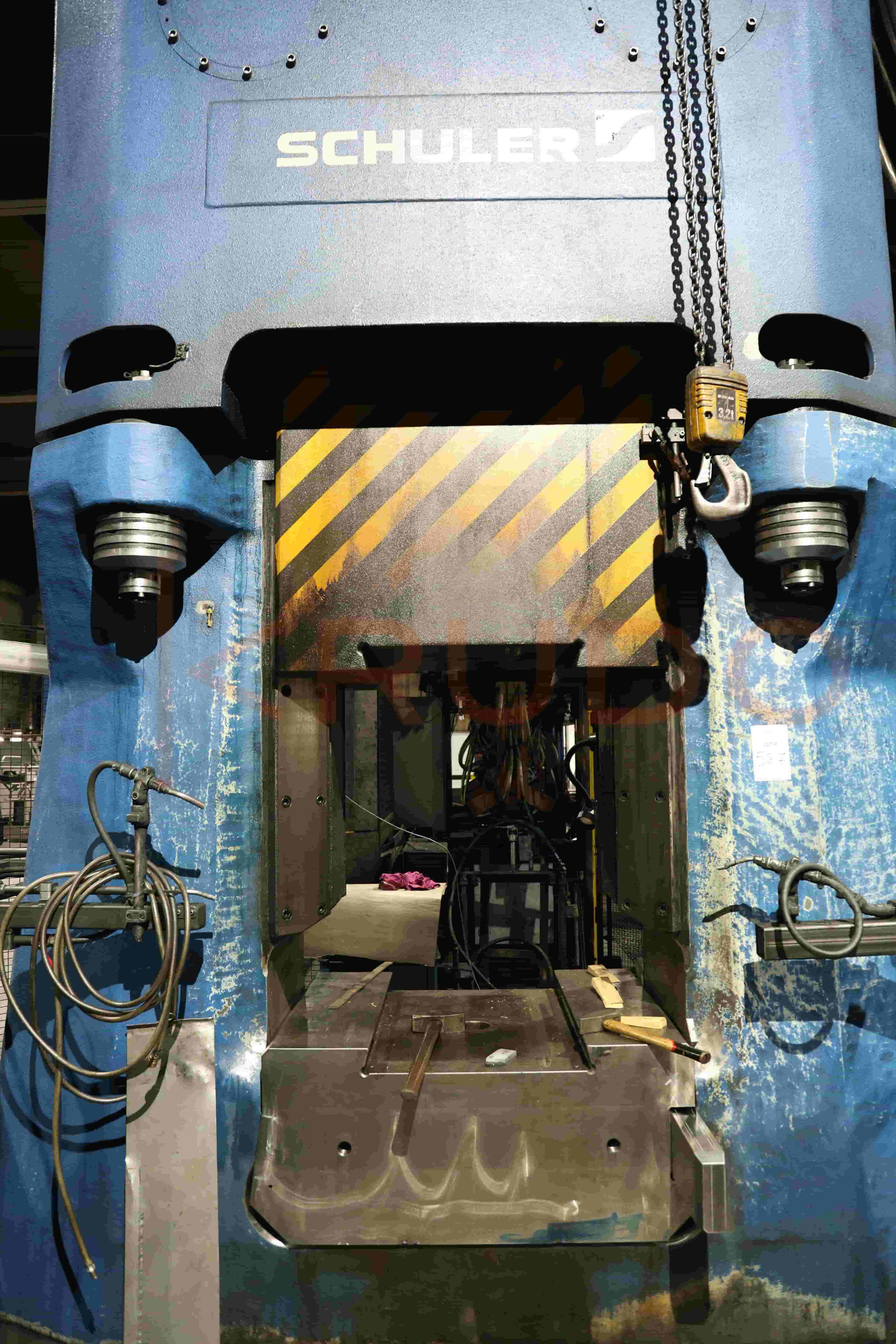

58.7. Forging Hammer
Schuler KG H 6.3 B (63 KJ)
Short-Stroke Die Forging Hammer
This forging hammer delivers precise, high-energy forming with a nominal impact energy of 63 kJ. Designed for fully automated forging lines, it ensures excellent repeatability and high productivity.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Schuler
Country
Germany
Machine Type
Forging Hammer
Year of Manuacture
2023
Technical Details

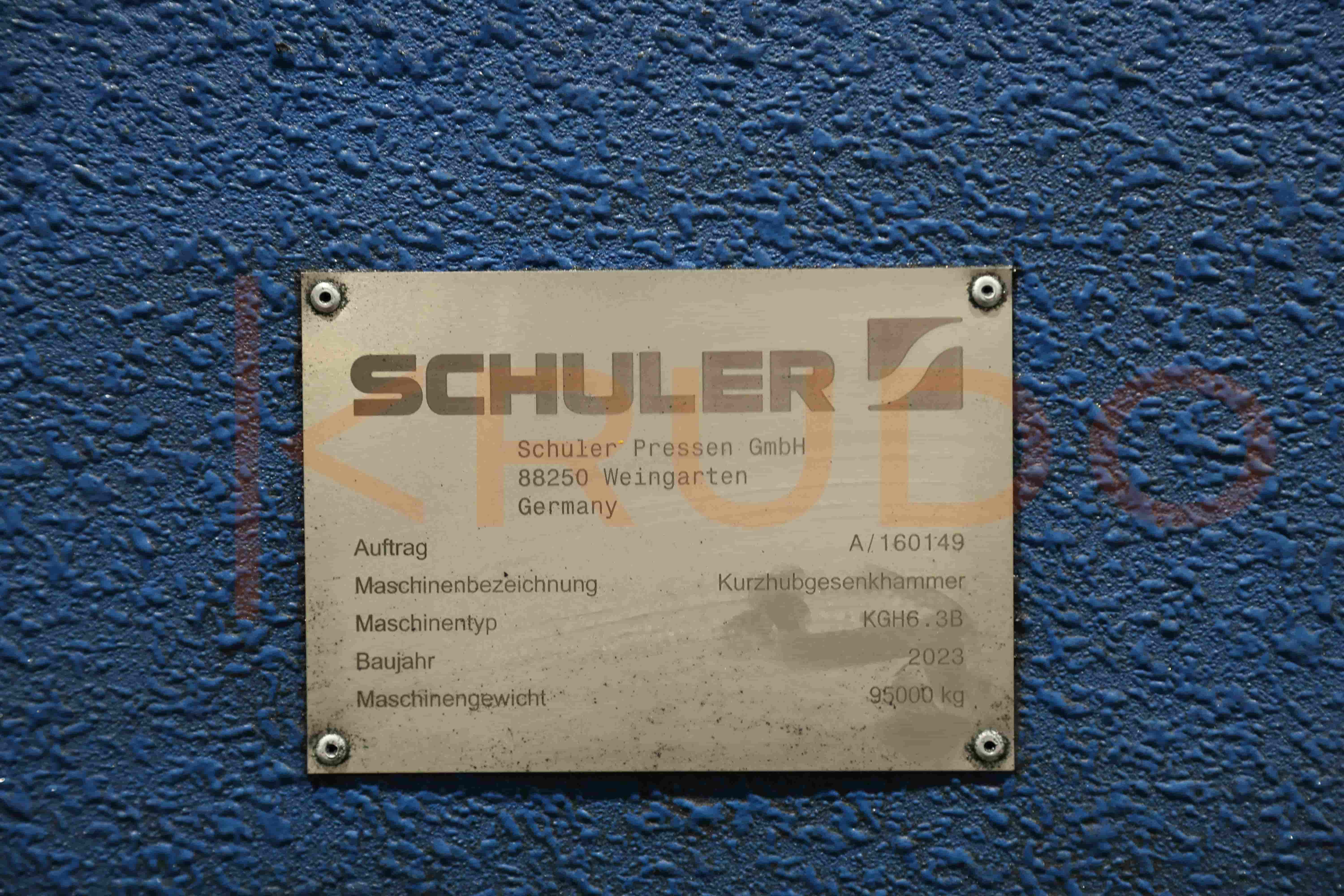

- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: KGH 6.3B
- Machine number: 119820
- Year of manufacture: 2023
- Operational parameters
- Working capacity max. 63 kJ
- Max. impact frequency 98/min
- Max. usable impact rate 42/min
- Ram speed 5,1 m/s
- Workspace
- Ram Stroke
- Min. 550 mm
- Max. 825 mm
- Die height without dovetail
- Min. total 190 mm
- Max. total 465 mm
- Clear width between guides 831 mm
- Ram depth approx. 750 mm
- Ram Stroke
- Weights
- Total machine weight approx. 95,000 kg
- Anvil bed 81,000 kg
- Dimensions
- Installation height above floor approx. 5655 mm
- Anvil bed Width x Depth: 2950 x 1880 mm
